CallAIder Assistant Webhooks: Complete Guide with Examples

Assistant webhooks let you receive server-side session lifecycle events in your external systems: CRM, BI, data warehouse, or integration gateway.

This guide covers the technical details end to end: which events are sent, which headers to expect, how to verify signatures, what payloads contain, and how to process events safely on your backend.

When a webhook is useful

Use webhook delivery when you need to:

• trigger post-processing when a dialogue ends;
• store transcripts in your own system;
• sync session statuses with your CRM;
• build your own analytics funnel outside the platform UI.

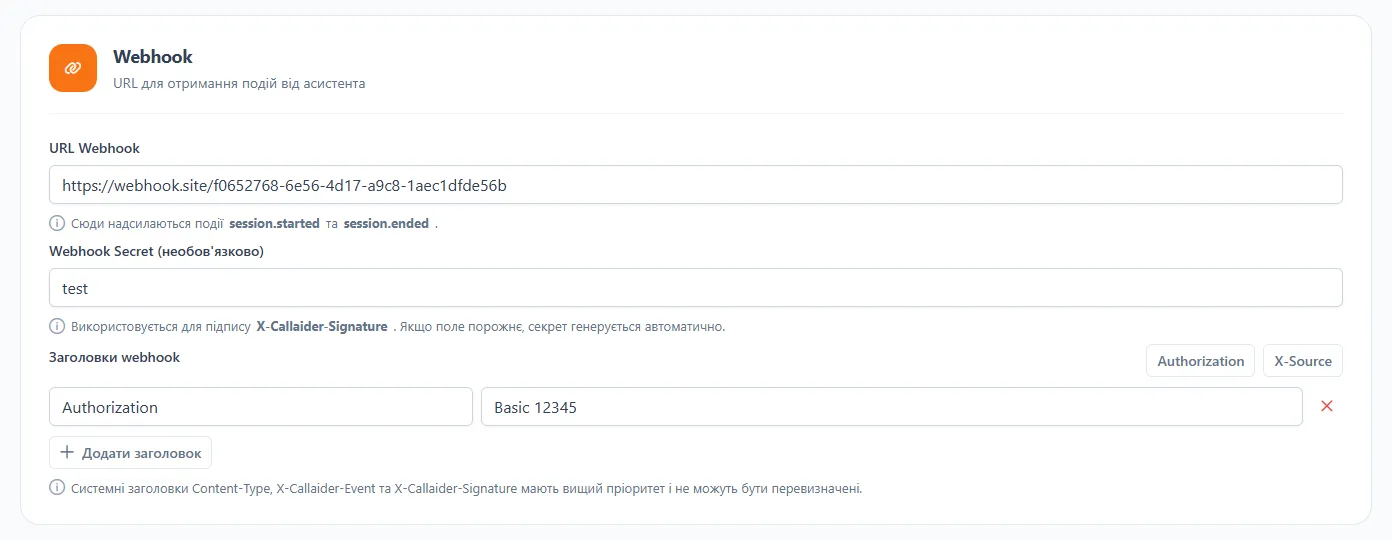

Step 1. Configure webhook in the assistant

In the assistant settings, fill in:

• webhookUrl - your endpoint URL for event delivery;
• webhookSecret (optional, recommended) - secret for X-Callaider-Signature;
• webhookHeaders - extra HTTP headers, for example Authorization: Basic 12345.

If webhookSecret is left empty, a secret can be generated automatically.

If webhookUrl is not set, events are not sent.

Which events are sent

Only two server-side events are delivered:

• session.started
• session.ended

HTTP request and headers

Request parameters:

• Method: POST
• Body: application/json
• Format: JSON payload

System headers that are always included:

• Content-Type: application/json
• X-Callaider-Event: <event_name>
• X-Callaider-Signature: sha256=<hex> (if webhookSecret is configured)

Custom headers from webhookHeaders are appended too, but there is an important priority rule:

• system headers have higher priority;
• Content-Type, X-Callaider-Event, and X-Callaider-Signature cannot be overridden via webhookHeaders.

Step 2. Validate events quickly via webhook.site

For a quick test, temporarily paste a webhook.site URL into webhookUrl.

After a test session, you should see separate POST requests for session start and session end.

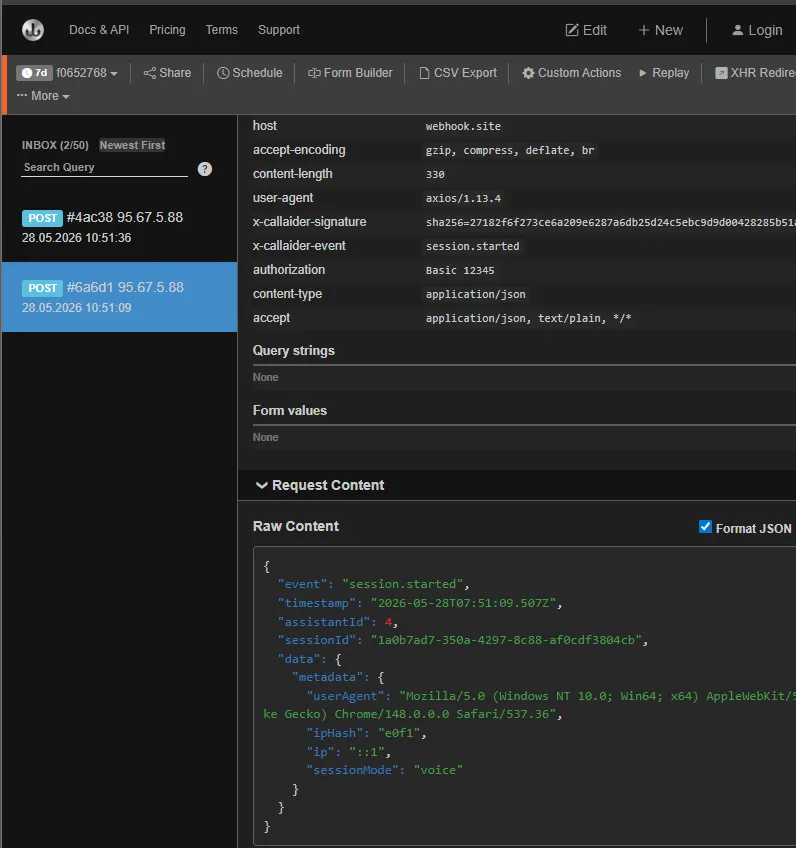

Example session.started request:

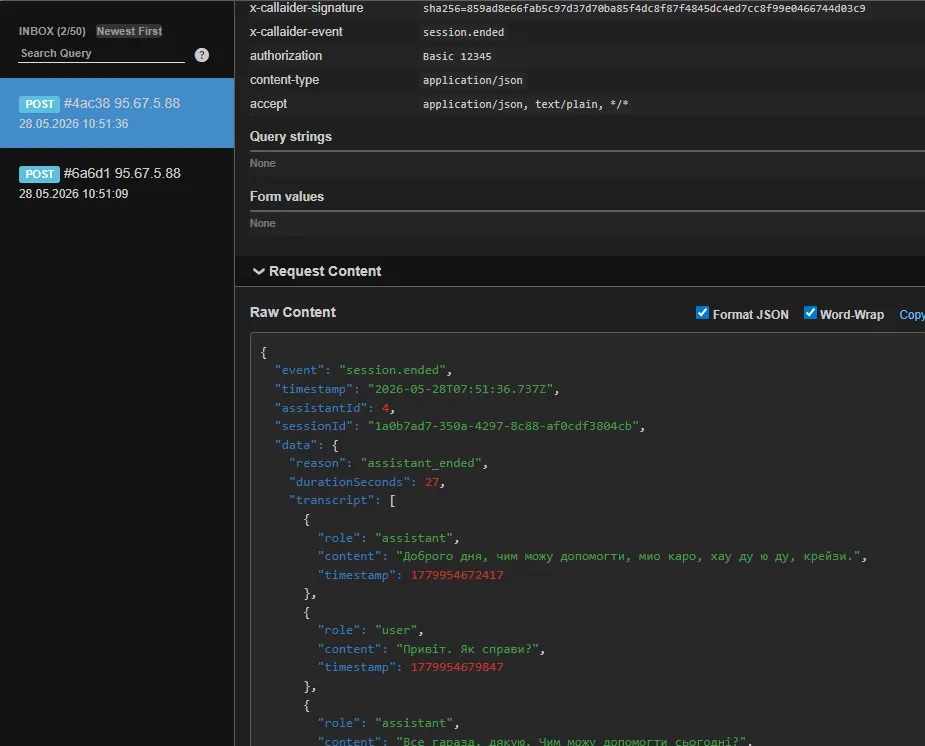

Example session.ended request:

Payload structure

General format:

{
  "event": "session.started | session.ended",
  "timestamp": "2026-05-28T12:34:56.789Z",
  "assistantId": 123,
  "sessionId": "2d7b8f7f-2de0-4db9-ae6f-9a1f8d98f6d2",
  "data": {}
}

session.started event

data contains session metadata:

{
  "metadata": {
    "userAgent": "Mozilla/5.0 ...",
    "sessionMode": "voice | text",
    "callId": "optional"
  }
}

Important notes:

• metadata comes from session creation context;
• metadata.sessionMode can be voice or text;
• exact metadata fields vary by session source (widget, web app, telephony, and so on).

session.ended event

data contains final session results:

{
  "reason": "assistant_ended",
  "durationSeconds": 27,
  "transcript": [
    {
      "role": "assistant",
      "content": "Hello, how can I help you?",
      "timestamp": 1779954672417
    },
    {
      "role": "user",
      "content": "Hi. How are you?",
      "timestamp": 1779954679847
    }
  ]
}

Fields:

• reason - end reason (assistant_ended, user_ended, client_disconnect, timeout, and so on);
• durationSeconds - session duration in seconds (when startedAt and endedAt are available);
• transcript - accumulated array of session messages.

transcript item format

{
  "role": "user | assistant | system | tool",
  "content": "text",
  "timestamp": 1716900000000,
  "toolCall": {
    "name": "optional",
    "arguments": {},
    "result": {},
    "error": "optional"
  },
  "files": [
    {
      "gcsUri": "gs://...",
      "mimeType": "application/pdf",
      "filename": "document.pdf"
    }
  ]
}

toolCall and files are present only when applicable for that message.

Verifying X-Callaider-Signature

Signature verification helps you confirm two things: the request really came from CallAIder and the payload was not modified in transit.

“HMAC does not encrypt data, but it gives cryptographic proof of payload integrity and shared-secret possession.”

Signature validation is optional:

• if you want additional security control, validate it;
• if your use case does not require it, you can process webhook events without signature validation.

You will receive the signature in this header:

• X-Callaider-Signature: sha256=<hex_digest>

The signature is calculated as HMAC SHA-256 over the raw JSON body.

Validation steps on your server:

1. Read the raw request body without changing formatting.
2. Compute HMAC SHA-256 with your webhookSecret.
3. Compare it with X-Callaider-Signature using a constant-time check.

Node.js (Express) example:

import crypto from 'node:crypto';
import express from 'express';

const app = express();

app.post(
  '/assistant-webhook',
  express.raw({ type: 'application/json' }),
  (req, res) => {
    const rawBody = req.body as Buffer;
    const signature = req.header('x-callaider-signature') || '';
    const event = req.header('x-callaider-event') || '';

    const secret = process.env.CALLAIDER_WEBHOOK_SECRET || '';

    if (secret) {
      const digest = crypto
        .createHmac('sha256', secret)
        .update(rawBody)
        .digest('hex');

      const expected = `sha256=${digest}`;
      const valid =
        signature.length === expected.length &&
        crypto.timingSafeEqual(Buffer.from(signature), Buffer.from(expected));

      if (!valid) {
        return res.status(401).json({ ok: false, error: 'Invalid signature' });
      }
    }

    const payload = JSON.parse(rawBody.toString('utf8'));

    // Recommended idempotency key: `${payload.sessionId}:${payload.event}`
    // Then enqueue async processing

    return res.status(200).json({ ok: true, event });
  }
);

Recommended production processing pattern

To keep integration stable under load:

1. If you use webhookSecret, validate the signature before business logic.
2. Deduplicate events by sessionId + event.
3. Return 2xx quickly, move heavy processing (CRM, AI post-processing, archival) to a queue.
4. Apply payload size limits because transcript can be large.
5. Log parsing failures separately for session.started and session.ended.

Event routing example

switch (payload.event) {
  case 'session.started':
    // create/update active session record
    break;
  case 'session.ended':
    // persist transcript, durationSeconds, reason
    // trigger post-processing in background
    break;
  default:
    // ignore unknown events
    break;
}

Pre-production checklist

• webhookUrl is reachable from external network.
• Endpoint consistently responds faster than 3000 ms.
• If needed, webhookSecret and signature verification are enabled.
• Idempotency is implemented (sessionId + event).
• Alerts for endpoint 4xx/5xx are configured.
• Both events are tested: session.started and session.ended.

Conclusion

CallAIder assistant webhook is a simple and reliable way to get session lifecycle data on your backend. A basic integration needs only one endpoint, and a production-ready setup should add signature handling, deduplication, and async processing.

If you are starting from scratch, validate payloads with webhook.site first, then switch webhookUrl to your production endpoint.
